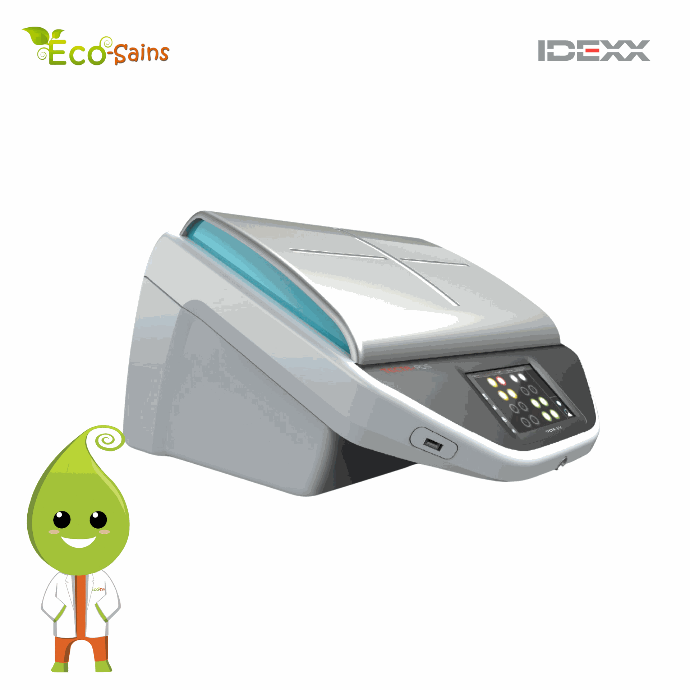

IDEXX, TECTAB16A-230-02 AUTOMATED MICROBIOLOGY DETECTION SYSTEM, 230V

Technical Specifications IDEXX TECTAB16


Specification
Operating Principal :
•The IDEXX TECTA™ B16 is a complete, self-contained automated microbiology testing
system capable of providing laboratory-grade results on-site with unprecedented
time-to-result performance.

Operating Principal :
Broad-spectrum E. coli (glucuronidase enzyme)
Total Coliforms (galactosidase enzyme)
Fecal Coliforms (galactosidase enzyme)
Enterococcus (glucosidase enzyme)

Instrument Capacity : Up to 16 simultaneous tests for presence/absence with optional quantitative reporting in CFU per 100ml on positive results

Sample Handling : Manual sample acquisition with Direct-to-Test capability eliminates sample handling and mixing of reagents.

Range : Dynamic range of <1 to >10⁸ CFU in 100 ml without requirement for sample dilution.

Operating Modes : Fully automated monitoring, interpretation and reporting of results. All results available locally or remotely via email (network connection required). Automatic system confirmation and calibration.
Run Mode – Incubation and interpretation in 2-18 hours.
Read Mode – Interpretation of pre-incubated samples in 60 seconds.

Typical Detection Times :
1. TECTAlert-ECA, E.Coli
< 1 CFU/100 ml : within 16 hrs
100 CFU/100 ml : within 9 hrs
1,000 CFU/100 ml : within 8 hrs
10 CFU/100 ml : within 4 hrs

2. TECTAlert-FCA, Fecal Coliform
< 1 CFU/100 ml : within 18 hrs
100 CFU/100 ml : within 10 hrs
1,000 CFU/100 ml : within 9 hrs
10 CFU/100 ml : within 5 hrs

3. TECTAlert-CCA, Total Coliform & E.Coli
< 1 CFU/100 ml : within 18 hrs
100 CFU/100 ml : within 12 hrs
1,000 CFU/100 ml : within 11 hrs
10 CFU/100 ml : within 7 hrs

4. TECTAlert-ENA, Enterococcus
< 1 CFU/100 ml : within 24 hrs
100 CFU/100 ml : within 12 hrs
1,000 CFU/100 ml : within 10 hrs
10 CFU/100 ml : within 4 hrs

User Interface : 7” (17.7 cm) front touch-screen display controls all functions. USB keyborad port optl.
Power Supply :120 VAC / 220 VAC versions available (must specify).
Weight (Installed) :Approximately 21 Kg / 463 lbs


Include Catridge :
TECTAlertCCA combined E.coli and Total coliform test 48 test/box
